CSS Grid is a powerful tool that allows for two-dimensional layouts to be created on the web. This guide was created as a resource to help you better understand and learn Grid, and was organized in a way I thought made the most sense when learning it.

Grid Container

Create a grid container by setting the display property with a value of grid or inline-grid. All direct children of grid containers become grid items.

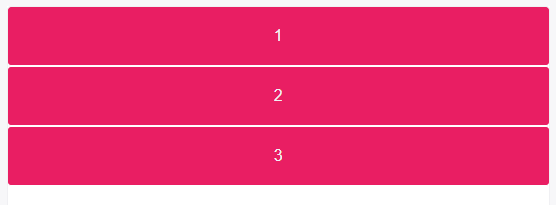

display: grid

Grid items are placed in rows by default and span the full width of the grid container.

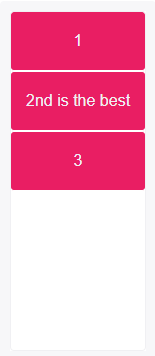

display: inline-grid

Explicit Grid

Explicitly set a grid by creating columns and rows with the grid-template-columns and grid-template-rows properties.

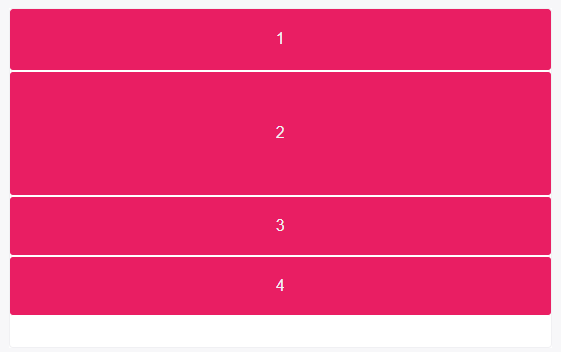

grid-template-rows: 50px 100px

A row track is created for each value specified for grid-template-rows. Track size values can be any non-negative, length value (px, %, em, etc.)

Items 1 and 2 have fixed heights of 50px and 100px.

Because only 2 row tracks were defined, heights of items 3 and 4 are defined by the contents of each.

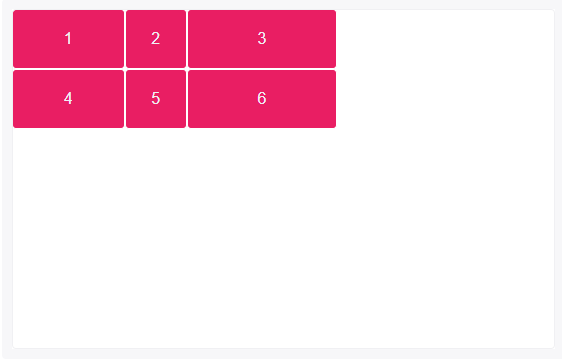

grid-template-columns: 90px 50px 120px

Like rows, a column track is created for each value specified for grid-template-columns.

Items 4, 5 and 6 were placed on a new row track because only 3 column track sizes were defined; and because they were placed in column tracks 1, 2 and 3, their column sizes are equal to items 1, 2 and 3.

Grid items 1, 2 and 3 have fixed widths of 90px, 50px and 120px respectively.

Grid Gaps (Gutters)

The grid-column-gap and grid-row-gap properties create gutters between columns and rows.

Grid gaps are only created in between columns and rows, and not along the edge of the grid container.

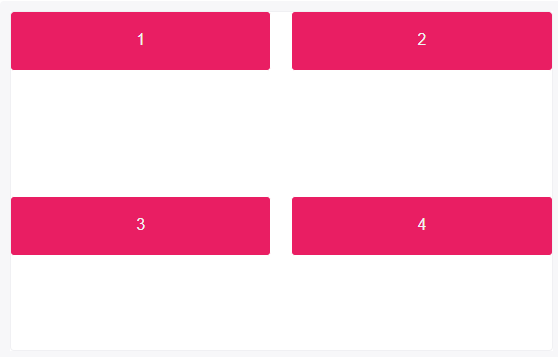

grid-row-gap:    20px;
grid-column-gap: 5rem;

Gap size values can be any non-negative, length value (px, %, em, etc.)

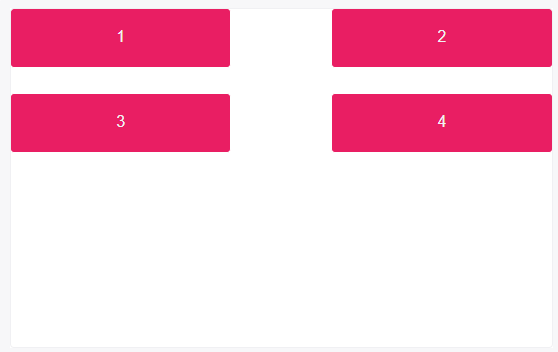

grid-gap: 100px 1em

grid-gap is shorthand for grid-row-gap and grid-column-gap.

If two values are specified, the first represents grid-row-gap and the second grid-column-gap.

Aligning Grid Items (Box Alignment)

CSS’s Box Alignment Module complements CSS Grid to allow items to be aligned along the row of column axis.

justify-items and justify-self align items along the row axis, and align-items and align-self align items along the column axis.

justify-items and align-items are applied to the grid container and support the following values:

  • auto

  • normal

  • start

  • end

  • center

  • stretch

  • baseline

  • first baseline

  • last baseline

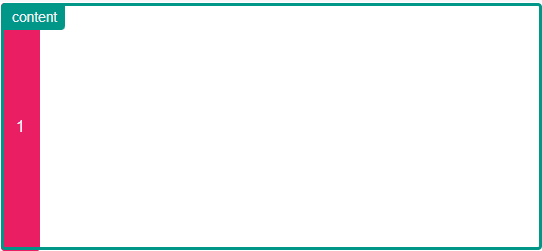

example:

.grid {
  grid-template-rows: 80px 80px;
  grid-template-columns: 1fr 1fr;
  grid-template-areas: "content content"
                       "content content";
}
.item { grid-area: content }


.grid {
  justify-items: start
}

Thanks for reading this blog! 😊
